 Post subject: Is My 65-66 Mustang a GT?
PostPosted: Tue Jan 27, 2009 5:19 pm
User avatar

Joined: Sun Oct 08, 2006 8:47 am
Posts: 1127
Location: Usually in the fog of often-timers
Is My 65-66 Mustang a GT?

1965-1966 Mustang GT Facts
The information on this page applies to 1965 and 1966 GT Mustangs only. This is a list of information that we have collected over the years. To the best of our knowledge, it is both true and correct. However, we offer this for informational purposes only. We have learned over the years that nothing is 100% with a Mustang, so we will not be held accountable for you buying a 6 cylinder coupe that someone "turned into a GT". We hope you find this information valuable.

P.S. If you have anything to add to this list, please e-mail creed@cjponyparts.com and make the subject of your e-mail "A Real GT".

Engine/Drivetrain:

1. There is no such thing as a 1964 1/2 GT. That means if you car has a generator, then it is not a GT.

2. All GTs had 4 barrel carburetors. This means your engine code in the V.I.N. had to be:
a. A=289 4v
b. K=289 Hi-po

3. All 1965 "K" code GTs had manual transmissions. 1965 "A" code GT's could have been automatic or manual. All 1966 GT's could have been automatic or manual.

Suspension:

1. All GTs were equipped with the special handling package which consisted of:
a. Stiffer Springs
b. Heavy Duty Shocks
c. 13/16" Front Sway Bar
d. Quick Ratio Steering Box (Code: HCC-AX for Manual Steering and HCC-AW for Power Steering)

Interior:

1. Instrument panel would have included the gauges instead of the "idiot" lamps:
a. 65 - this would have been an upgrade option.
b. 66 - all cars had gauges.

2. 1965 GT's had a unique amp gauge with a pass through amperage sensor. This is different than the standard 1965 Mustang amp gauge. All 1966 Mustangs have the same amp gauge that receives a charge/discharge signal from the voltage regulator.

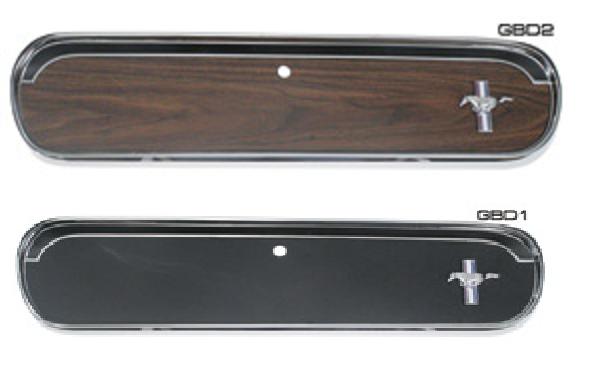

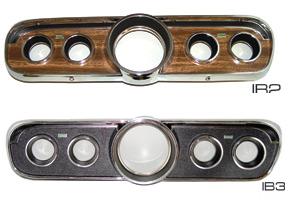

3. There were two different sets of instrument bezels and glove box doors that came on 1965 and 1966 Mustang GT's:
See Atachments
a. IB2 and GBD2 came on all 65-66 Mustangs with Deluxe Interior.
b. IB3 and GBD1 came on all 65-66 GT's with Standard Interior.

Brakes:
1. Originally equipped with front disc brakes.

2. Requires a proportioning valve.

3. Because of the dual exhaust, the rear brake hose mounts in a higher location in the arch of the axle housing then the single exhaust. This is to prevent the rear brake hose from being burned by the exhaust pipe.

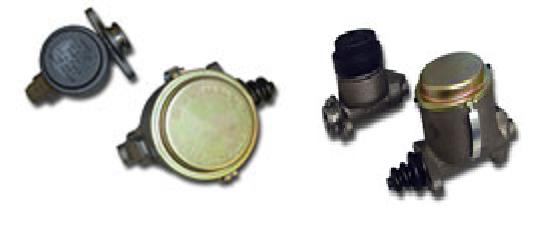

4. Mustangs with disc brakes had a much larger master cylinder then those with drum brakes. The pictures show the difference between the two master cylinders.
Master Cylinder Comparison 1 Master Cylinder Comparison 1
See Atachments

Exhaust:
1. Dual exhaust was standard and exited the rear of the car through the rear valance.

2. There are reinforcing plates for the exhaust hanger studs on each side of the tunnel under the rear seat floor pan.

3. There are two bolt holes punched through the rear end of the rear frame rails. They are for the exhaust hanger brackets that support the trumpets on each side of the car. These holes can not be drilled after the car is welded together because the trunk floor is in the way.

4. The rear frame rails also have a "U" shaped reinforcement piece inside the frame rail where the holes for the rear exhaust hangers are. This reinforcement can be felt by placing your shortest finger in the rear alignment hole in the frame rail and tipping it rearward.

5. The rear brake hose body hanger was moved from the top of the driveshaft tunnel to vertical section of the rear floor (drivers side), between the rear exhaust hanger holes and the frame rail. There is a vertical and horizontal indention in the vertical floor section to identify the correct placement.

Exterior:

1. "GT" emblems are mounted on each of the front fenders and the running horse emblems were deleted.

2. Individual "M U S T A N G" pin letters are located in a stripe that runs along the lower rocker panel.

3. Rocker panel moldings are excluded.

4. Fog lights are standard.

5. The holes in the radiator support for the fog lights are punched through the support, not drilled. Therefore, if the fog lights are factory installed, there should be a lip on the hole in the radiator support, not a clean drilled hole.


Attachments:
65-66 Master cyclinders.JPG
65-66 Master cyclinders.JPG [ 11.83 KiB | Viewed 622 times ]
66 GT Glove boxes.JPG
66 GT Glove boxes.JPG [ 19.99 KiB | Viewed 622 times ]
66 GT Dash deluxe IB2  Standard IB3.JPG
66 GT Dash deluxe IB2 Standard IB3.JPG [ 12.48 KiB | Viewed 622 times ]

_________________
The Fountain of Youth has been discovered
and now works its magic from my garage.
Top
 Profile

 Post subject: Is My 65 66 Mustang a GT
PostPosted: Wed Dec 08, 2010 8:32 am
if you are going to buy a mustang, get a 5.0L... why waste your money on a 6.. seriously

but i havent heard anything bad about them


Top


 Post subject:
PostPosted: Wed Dec 08, 2010 11:10 am

Joined: Tue Feb 13, 2007 6:11 am
Posts: 98
What?----Where did this article mention a 6 cyl?
